Lithium-ion Batteries
The Enginer Lithium-ion technology!
Pony Testing Data
I. Standard
RECOMMENDATIONS ON TRANSPORT OF DANGEROUS GOODS, MANUAL OF TEST AND CRITERIA, SECTON 38.3 LITHIUM BATTERIES (ST/SG/AC.10/11/Rev 4 section 38.3)
III. Test Item
- Altitude simulation
- Thermal test
- Vibration
- Shock
- External short circuit
- Impact
- Overcharge (not applicable)
- Forced discharge
II. Sample Description
| Sample Name | Lithium ion battery | Battery Type | RFE-F20 |
|---|---|---|---|
| Nominal Voltage | 3.2V | Rated Capacity | 20Ah |
| Charge Voltage | 3.8V | Limit Voltage | 2.0V |
| Maximum Charge Current | 10A | Maximum Discharge Current |
60A |
IV. Conclusion
| ITEM | SAMPLE NUMBER | STANDARD | CONCLUSION |
|---|---|---|---|
| Altitude simulation | N1~N20 | UN38.3-T1 Pass | Pass |
| Thermal test | UN38.3-T2 Pass | Pass | |
| Vibration | UN38.3-T3 Pass | Pass | |
| Shock | UN38.3-T4 Pass | Pass | |
| External short circuit | UN38.3-T5 Pass | Pass | |
| Impact | N21~N25&C1~C5 | UN38.3-T6 Pass | Pass |
| Forced discharge | N26~N35&C6~15 | UN38.3-T8 Pass | Pass |
The Enginer Lithium-ion Battery
Lithium-ion Batteries - Real Force 8F80AH
- 20AH Cell Pouch Specification
- Download Pack Specification PDF
- Material Safety Sheet
- Battery Test Report
- Complete PHEV Conversion Kits
Specifications
- Light weight—1/3 of lead acid batteries
- Long cycle life – 2,000 cycles in general
- Safest chemistry preventing system from explosion or firing
- Wide range of operating temperatures (-12F to 167F)
- Suitable for EV conversions, solar and wind energy applications
- Four 3.2V cells in series
- 80 Amp hours (2K watt-hours)
- 50 lbs weight
- System size: 10 in x 8 in x 5 in
- Charge current: < 20 Amps
- Rated discharge amperage: 80 Amps
- Maximum continuous discharge amperage: 160 Amps
- Life cycle: > 2,000 times in general (80% DOD), > 3,000 times (70% DOD)
- 48V 15A charger also available at $200
- 2A per cell BMS for 16 cells also available at $200
- Volume discount is available
- 2-year Warranty
Gallery / Images

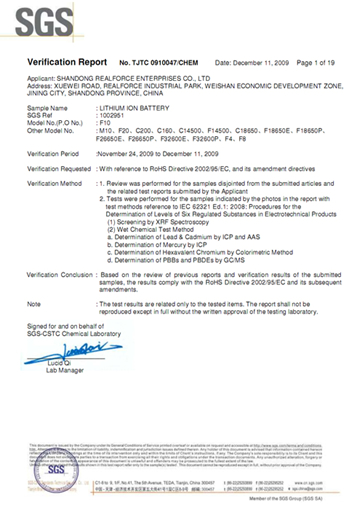

Real Force Battery SGS Verification Report
* This is an independent test result from David James Hrivnak. The Werker is a 50 lb lead AGM 55 amp-hr battery sold as a replacement for wheel chairs. The Optima is a lead AGM 45 lb 40 amp-hr battery often used in EV applications. The Li-FePO4 is a 15lb 40 amp-hr battery.
- Complete conversion kit is available. Click here
